Saturday, December 20, 2014

Four days before Christmas and I feel as today was a great gift given to me for the intense work I put into the clay mold of Ocean Dancer’s I second pour. Spending many hours perfecting the smoothness of the clay really paid off. One may not notice it in the following photos, as the bronze comes out of the furnace at 2,000 degrees, but I can tell it is going to be a smooth lovely finish. In about 40 more hours of work!

Le Beau Touché is a sulfur free, extremely smooth and flexible plasteline with exceptional adhesive qualities, but too soft.

  • The summer heat made the clay very soft, every nail and finger print showed.
  • More clean up to eliminate the imperfections from the marks in the clay.
  • Careful with the tools, any “miss-taps from a tool showed up on the clay.
  • More clean up to eliminate the scratches
  • Dust, clean it up


Next clay
AMACO Modeling/Sculpting Materials > Industrial Styling Clay (HBX-2)
Non-hardening. AMACO® Industrial Styling Clay is excellent for designing large and small models. A medium firmness clay that can be carved, extruded, shellacked or painted and held to +/- 1/2000 inch tolerance.


Today was the pour…..



Seven layers of sand creates a ceramic shell
Ceramic shell is heated to 1700 degrees to prevent cracking

30 minutes later it rests in a pile of dry clean sand.

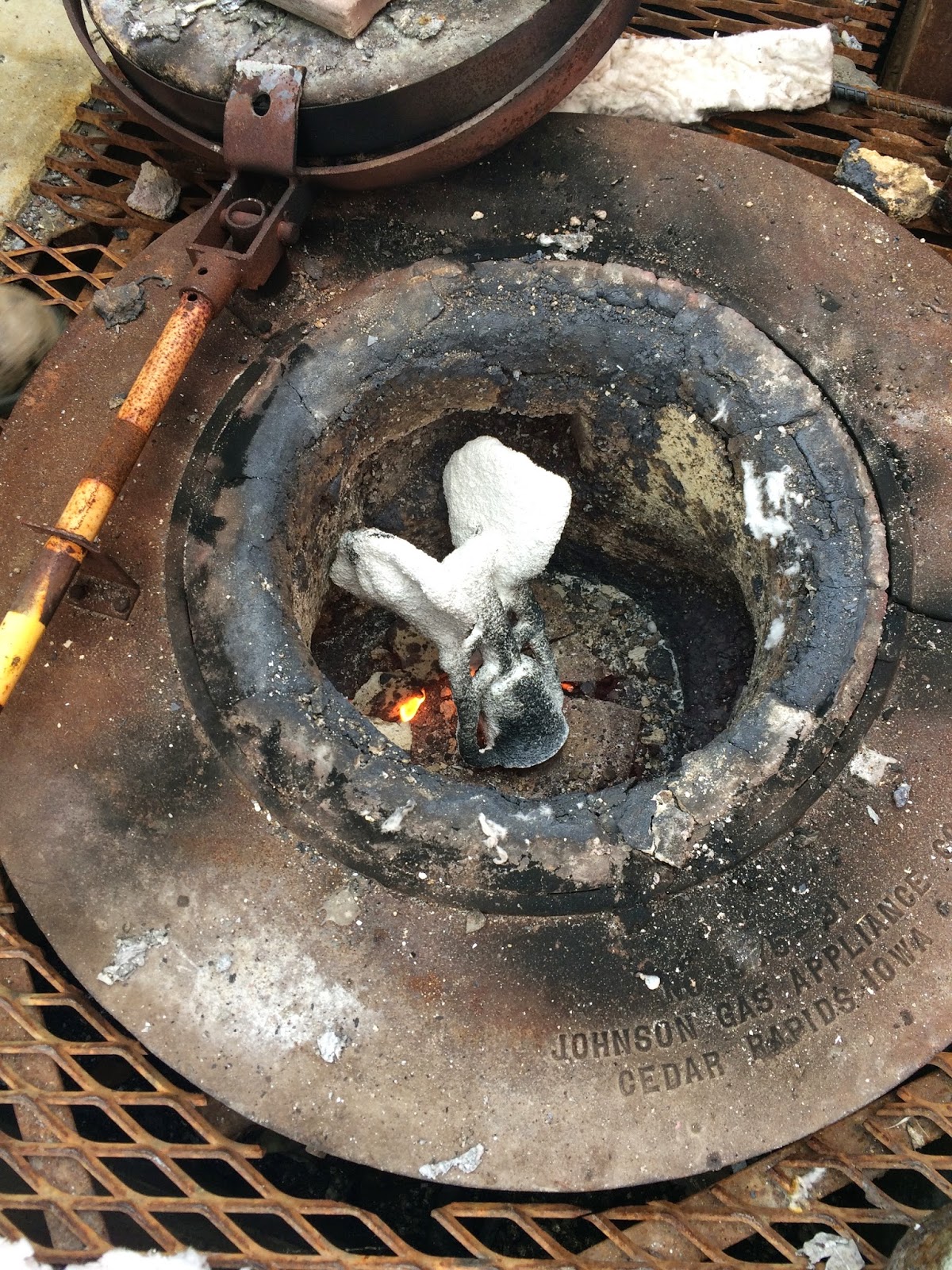

Molton Bronze is heated to 2000 degrees, broken glass is added to the bronze to release impurities.

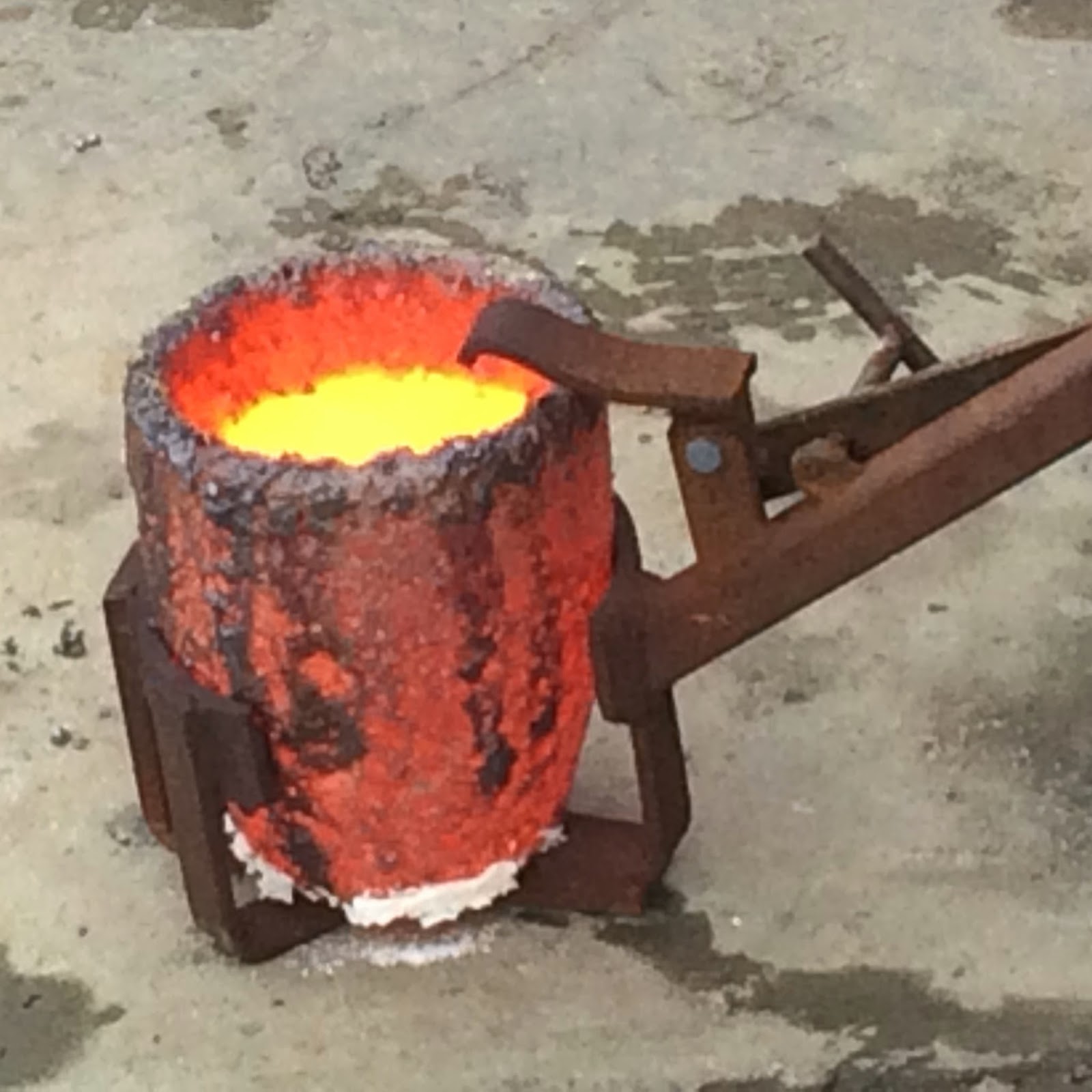

Clean very hot molton bronze secure and ready to pour

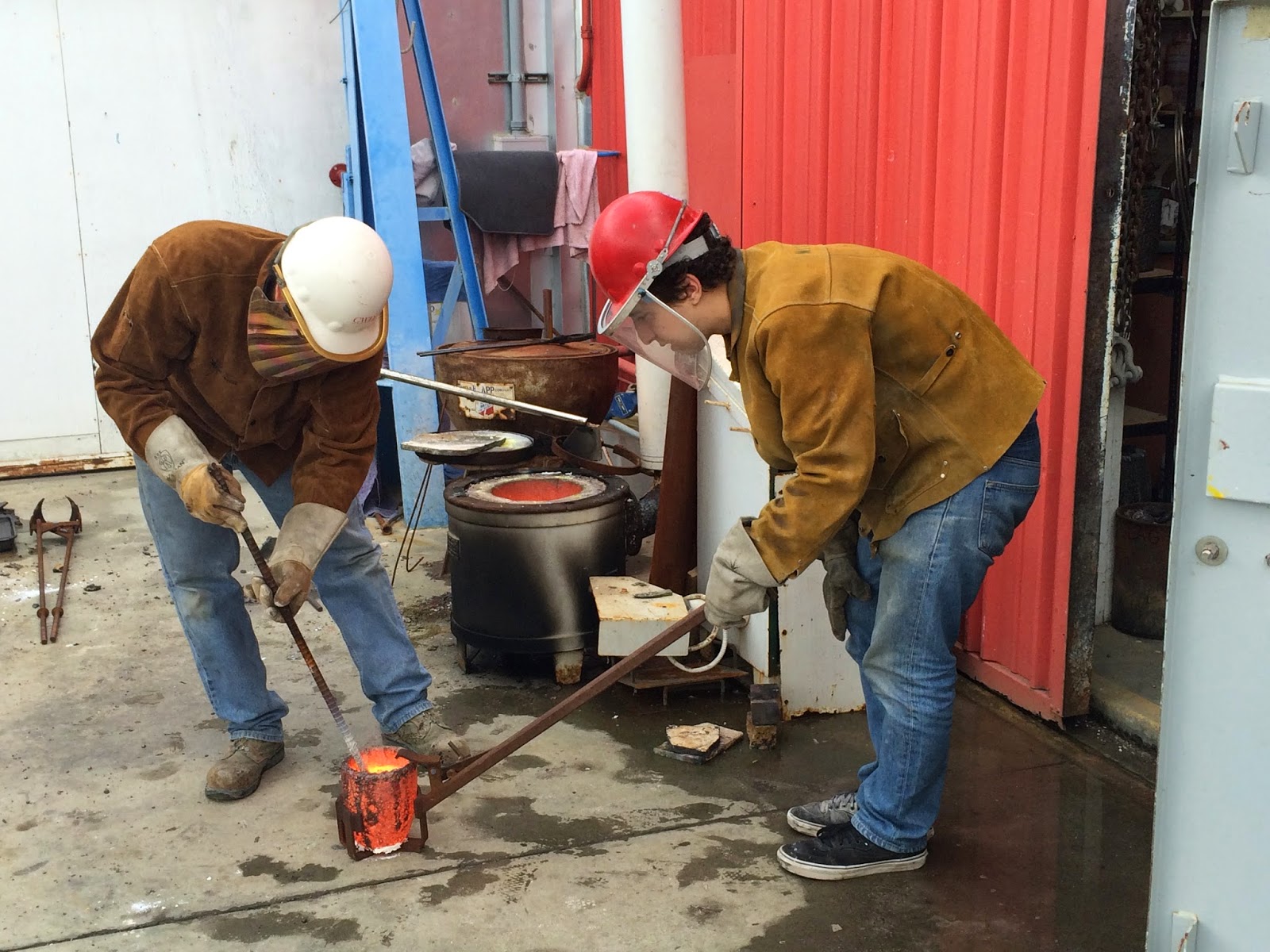

Nic's first pour!

2000 degrees
One hour after the pour the ceramic is removed from the sand to cool.

After 30 minutes, its grab with large prongs and water is poured on to crack the shell.




A very clean break

Next the spurs are sawed off
